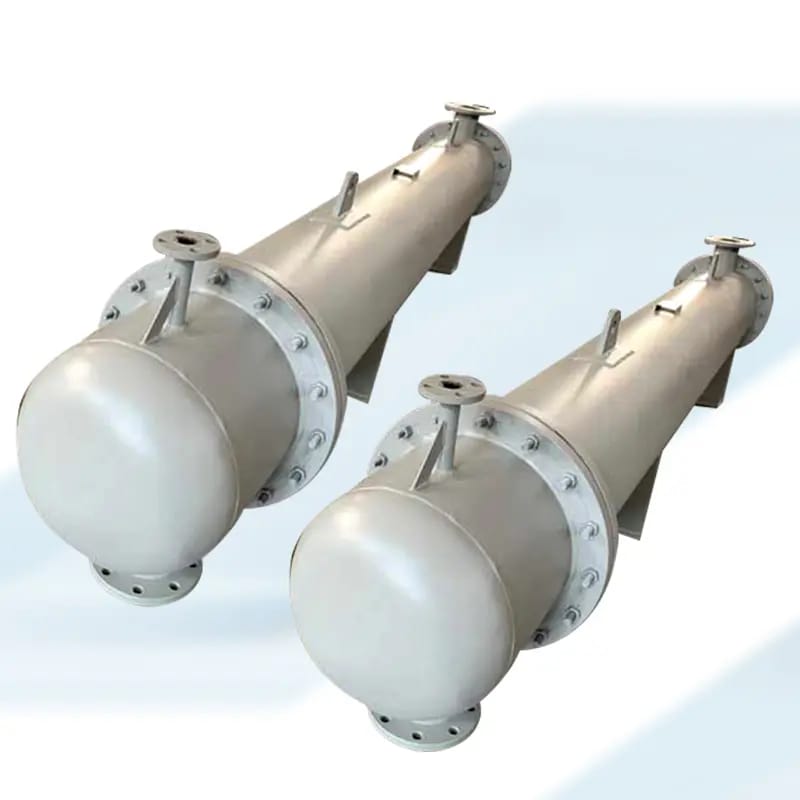

Send InquiryShell and tube water cooled condenser 300 TR
Price 85000.0 INR/ Unit
MOQ : 1 Unit
Shell and tube water cooled condenser 300 TR Specification
- Diameter
- 900 mm
- Max Pressure
- 20 bar
- Temperature
- Up to 45C Water Inlet
- Max. Capacity
- 300 TR
- Number of Pipe
- Approx. 180-250 Tubes
- Thickness
- Shell: 8-12 mm, Tube: 1.2-1.5 mm
- Condition
- New
- Structure
- Shell and Tube Type
- Liquid Flow Rate
- 60-75 m3/hr
- Working Presssure
- 10-20 bar
- Power
- Not Applicable (Passive Equipment)
- Weight
- Approx. 900 kg
- Dimensions
- Approx. 3200 mm (L) x 900 mm (Dia)
- Tube Material
- Copper/SS 304
- End Connections
- Flanged
- Design Standard
- ASME/TEMA
- Shell Material
- Mild Steel/Carbon Steel
- Color/Finish
- Industrial Epoxy Painted
- Insulation Provision
- Optional, External
- Tube Length
- 2.5-3 meters
- Mounting Type
- Horizontal
- Tube Diameter
- 19 mm
- Heat Transfer Area
- 40-50 m2
- Leak Test Pressure
- 25-30 bar
