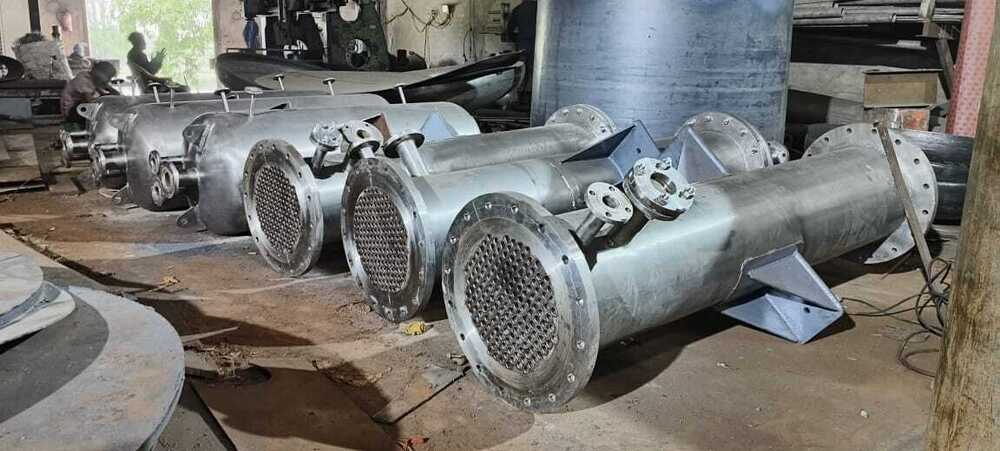

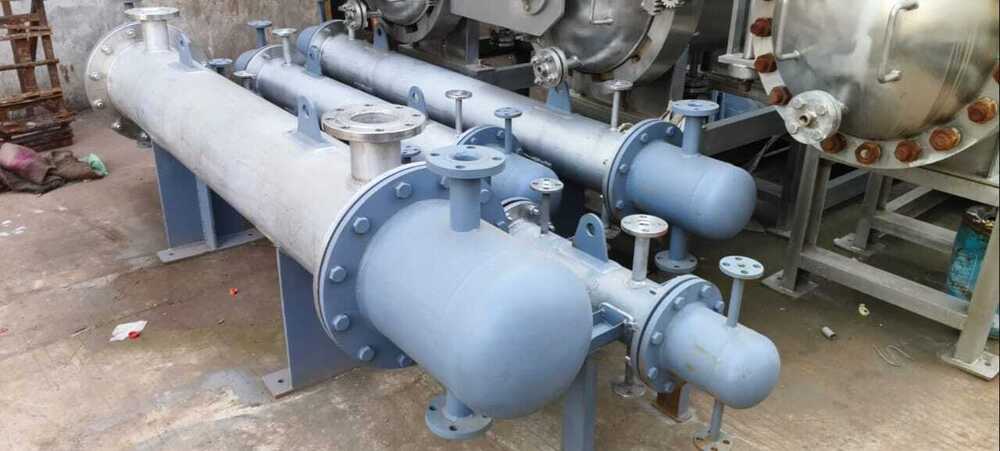

Industrial Shell And Tube Type Heat Exchanger

Send Inquiry

Request To Call Back

Industrial Shell And Tube Type Heat Exchanger

Get a Price/Quote

MOQ : 1 Unit

Industrial Shell And Tube Type Heat Exchanger Specification

Air Volume
N/A (unit is for liquids/gases, not direct air handling)

Number of Pipe
Approx. 250-700 tubes (depends on capacity & design)

Max Pressure
16 bar (can be customized up to 40 bar)

Max. Capacity
Up to 2000 kW (varies with design and duty)

Temperature
-20C to +250C

Diameter
Shell Dia: 1200 mm (can vary as per specification)

Thickness
6 mm to 20 mm (based on pressure/requirement)

Condition
New

Structure
Shell and tube, cylindrical body with tube bundle

Liquid Flow Rate
1000-20000 LPH (Liters Per Hour), based on application

Working Presssure
Up to 16 bar (customizable as per requirement)

Voltage
N/A (not applicable for heat exchangers)

Power
N/A (passive device, no electrical power required)

Weight
Approx. 800-1500 kg (varies as per size & design)

Dimensions
Approx. 1200 mm diameter x 3200 mm length (can vary)

Material of Construction
Mild Steel (MS), Stainless Steel (SS304/SS316), as per process needs

Service Fluid
Oil, Water, Steam, Chemicals, Gases, etc.

Connection Type
Flanged, welded or threaded ends

Tube Arrangement
Straight/ U-tube, fixed/floating head

Tube Size
16 mm OD to 25 mm OD, standard

Tube Length
1000 mm to 6000 mm (customizable)

Cleaning Type
Easy tube bundle removal for maintenance

Tube Type
Seamless/ERW (as per design)

Baffle Spacing
100 mm to 200 mm (as per design)

Application
Process industries, petrochemicals, power plants, HVAC, refineries, chemical plants

Heat Transfer Area
10 m2 to 200 m2 (depends on design/requirement)

Mounting
Horizontal, skid/base mounted

Corrosion Resistance
Yes, depends on selected material

Pressure Test
Hydrostatic/Pneumatic (as per standard)

Industrial Shell And Tube Type Heat Exchanger Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
20 Units Per Month

Delivery Time
2-5 Days

Main Domestic Market
All India

About Industrial Shell And Tube Type Heat Exchanger

Discover our Industrial Shell And Tube Type Heat Exchanger, crafted for truly unbeatable performance in process industries, petrochemicals, refineries, HVAC, and power plants. Engineered from cost-effective yet lustrous Mild Steel or Noteworthy Stainless Steel (SS304/SS316), you receive optimal corrosion resistance tailored to your needs. Benefit from a special design: seamless or ERW tubes, customizable sizes, and innovative straight/U-tube arrangements with effortless cleaning. With special discounts, high efficiency, and robust construction, this exchanger delivers reliability and longevity. An ideal investment for anyone seeking durability and cost savings in critical heat transfer applications.

Versatile Application and Competitive Edge

Our Industrial Shell And Tube Type Heat Exchangers are used in key sectors such as process plants, petrochemicals, HVAC, refineries, and power generation. The primary competitive advantages include customized construction, corrosion-resistant materials, and an easy tube bundle removal process for straightforward maintenance. This exchanger serves as a pivotal component in cooling, heating, and energy recovery tasks, making it a reliable solution for industries that demand efficiency, durability, and consistent operation.

Reliable Supply, Market Value, and Payment Flexibility

We maintain an admirable supply ability to cater to both bulk and urgent orders, ensuring timely delivery across India's major industrial hubs. Our products hold substantial market value thanks to unparalleled customization and proven performance. Payment arrangements are flexible, with multiple terms available to accommodate varying procurement processes. Commitment to quality delivery and maximum customer satisfaction sets us apart as a trusted exporter, manufacturer, and supplier in the competitive market.

FAQ's of Industrial Shell And Tube Type Heat Exchanger:

Q: How is the Industrial Shell And Tube Type Heat Exchanger customized for different applications?

A: Customization is achieved by selecting material (Mild Steel or Stainless Steel), tube type and size, tube arrangement, pressure rating, and other design parameters based on specific process needs and operating conditions.

Q: What makes these heat exchangers cost-effective for buyers?

A: Their robust construction using durable and corrosion-resistant materials, combined with easy maintenance features such as removable tube bundles, ensures long operational life and reduced downtime, providing a truly cost-effective investment.

Q: When should industries opt for a shell and tube heat exchanger?

A: Industries should use these exchangers when handling large volumes of fluids or gases requiring efficient heat transfer, particularly in sectors like chemical processing, power plants, or refineries where durability and reliability are essential.

Q: Where can these heat exchangers be installed or mounted?

A: Installation options include horizontal, skid, or base-mounted setups. They are frequently used in industrial processing units, plant rooms, and facilities handling oil, water, steam, chemicals, or gases.

Q: What benefits does seamless or ERW tubing provide in these exchangers?

A: Seamless and ERW (Electric Resistance Welded) tubes enhance durability and heat transfer efficiency, letting users choose the best option based on budget, pressure requirements, and specific industrial applications.

Q: How simple is the process of cleaning and maintaining the tube bundles?

A: Maintenance is straightforward due to the easy removal of tube bundles, allowing for quick access and cleaning, which minimizes downtime and ensures long-term performance.
