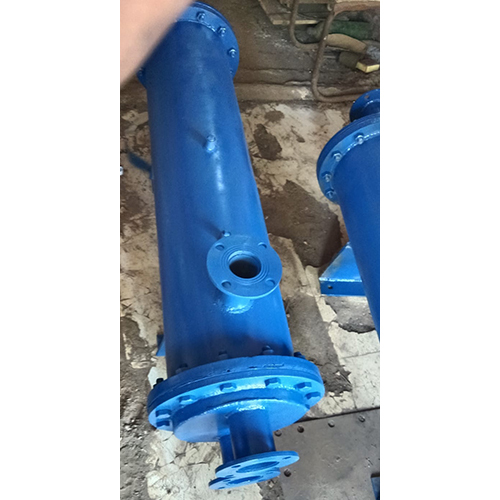

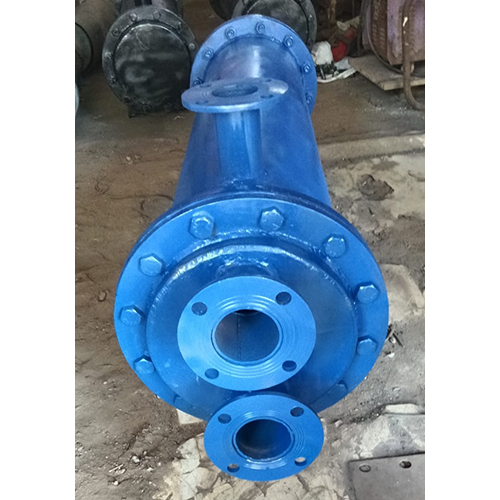

Shell And Tube Type Heat Exchanger

Get a Price/Quote

MOQ : 1 Unit

Shell And Tube Type Heat Exchanger Specification

Thickness
5-12 mm shell thickness (as per design)

Max Pressure
16-20 bar

Max. Capacity
Up to 500,000 Kcal/hr (varies as per application)

Diameter
250-600 mm (customizable)

Number of Pipe
20-200 (depends on shell size and design)

Condition
New

Structure
Shell and Tube, Cylindrical, Vertical Orientation

Liquid Flow Rate
50 to 200 m3/hr (customizable)

Working Presssure
Up to 20 bar (typical)

Power
Not Applicable (passive device)

Weight
Approx 100-500 kg (varies with capacity)

Dimensions
Height 1000-2000 mm x Diameter 250-600 mm (custom)

Tube Diameter
12.7 mm (1/2

Material
Mild Steel, Stainless Steel 304/316, Carbon Steel

Heat Transfer Area
5-100 m2 (as per model)

Design Standard
ASME/TEMA/IS

Color
Blue (custom paint available)

Leakage Test Pressure
1.5 times design pressure

Application
Oil Refineries, Chemical Industry, Power Plants, HVAC Systems

Corrosion Resistance
Yes, with epoxy/polyurethane coating

Tube Material
Copper/SS/Brass/Carbon Steel (as per order)

Mounting Type
Vertical/Horizontal (customizable)

Maintenance
Easy tube cleaning and replacement

Manufacture Method
Welded Construction

End Connections
Flanged/Threaded as per requirement

Shell And Tube Type Heat Exchanger Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
20 Units Per Month

Delivery Time
2-5 Days

Main Domestic Market
All India

About Shell And Tube Type Heat Exchanger

Take advantage of our acclaimed Shell and Tube Type Heat Exchanger-an extraordinary solution crafted to deliver cost-effective and lavish heat transfer performance. Manufactured with premium Mild Steel, Stainless Steel 304/316, or Carbon Steel, this heat exchanger boasts unmatchable versatility. Designed for oil refineries, chemical industries, power plants, and HVAC systems, it offers corrosion resistance with epoxy/polyurethane coatings and easy maintenance. Customizable in size, pressure, and mounting type, it adheres to strict ASME/TEMA/IS standards, ensuring reliability and durability for demanding industrial applications. Exported globally from India.

Versatile Applications for Robust Performance

The Shell and Tube Type Heat Exchanger is designed for use in a range of industries-oil refineries, chemical plants, power generation, and HVAC systems stand to benefit from its adaptable design. Its unmatchable compatibility with multiple application media such as oil, process water, steam, and chemicals ensures extraordinary operational flexibility. Its corrosion resistance and customizable features make it a superior choice for processes that require precise temperature control and durability under varying operating conditions.

Sample Policy and Export Market Reach

We offer detailed quotations for sample Shell and Tube Type Heat Exchangers, with sample charges and rates depending on customization requirements. Our sample policy is customer-friendly, allowing for sample evaluation before large orders. Samples are available upon request, and charges will be communicated transparently. With an acclaimed presence as an exporter, manufacturer, and supplier from India, our main export markets include Asia, Africa, Middle East, and Europe, enabling global clients to access reliable cooling and heating solutions.

FAQ's of Shell And Tube Type Heat Exchanger:

Q: How does the Shell and Tube Type Heat Exchanger benefit specific industrial applications?

A: This heat exchanger provides extraordinary heat transfer efficiency and robust corrosion resistance, making it ideal for refineries, power plants, chemical industries, and HVAC systems where reliable temperature control is critical.

Q: What materials and customization options are available for the shell and tube construction?

A: Customers can select from Mild Steel, Stainless Steel 304/316, Carbon Steel for the shell, and Copper, SS, Brass, or Carbon Steel for tubes, with customizable tube diameters and shell sizes to suit operational requirements.

Q: Where is the Shell and Tube Type Heat Exchanger commonly used?

A: It is widely utilized in oil refineries, chemical processing plants, thermal power stations, and HVAC setups, where unmatchable heat transfer and durability are essential.

Q: What is the process for obtaining a sample and what are the applicable charges?

A: To obtain a sample, request a quotation indicating your specific requirements. Sample charges will apply based on the customization needed, and rates will be communicated before preparation.

Q: How easy is it to maintain this heat exchanger, particularly for tube cleaning and replacement?

A: Designed for easy maintenance, the exchanger features tube arrangements that facilitate straightforward cleaning and quick tube replacement, minimizing downtime and operational costs.
