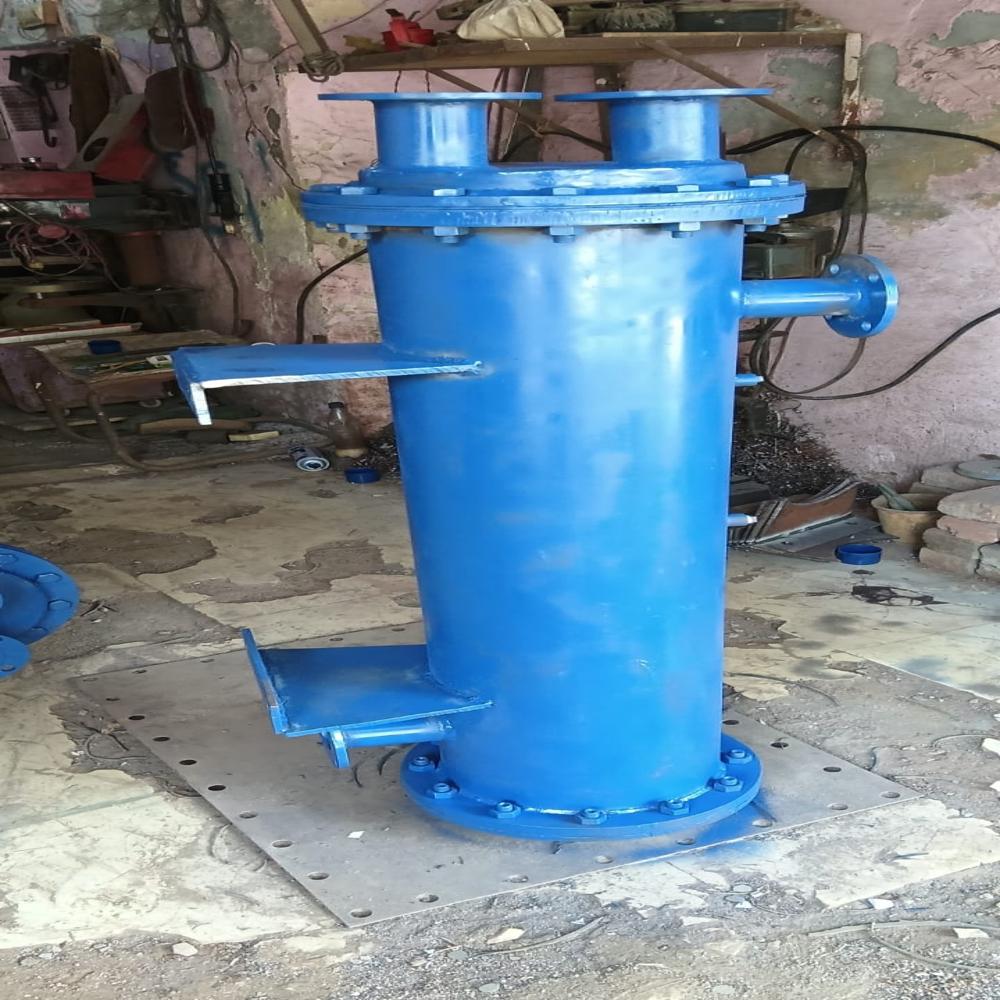

Send InquiryShell and tube type heat exchanger
Price 5000.0 INR/ Piece
MOQ : 1 Piece
Shell and tube type heat exchanger Specification
- Diameter
- 400 mm
- Temperature
- Max. 200C
- Max Pressure
- 10 bar
- Max. Capacity
- Up to 10 m3/hr (customized)
- Thickness
- 6 mm
- Number of Pipe
- 24 tubes (approx., varies per design)
- Condition
- New
- Structure
- Cylindrical vertical shell with flange ends
- Liquid Flow Rate
- 5000 - 20000 LPH (customizable)
- Working Presssure
- Up to 10 bar
- Power
- N/A (passive device, no power required)
- Weight
- Approx. 150 kg
- Dimensions
- 1200 mm height x 400 mm diameter (approx.)
- Test Pressure
- Up to 15 bar
- Application
- Chemical, pharmaceutical, HVAC, oil & gas industries
- Tube Material
- Seamless MS/SS tubes
- Mounting Type
- Floor mounted, vertical orientation
- Tube Side Fluid
- Process Liquid
- Finish
- Epoxy painted external surface
- End Connection
- Flanged (ANSI/DIN standards available)
- Shell Side Fluid
- Cooling/Heating Medium
- Material of Construction
- Mild Steel (MS), available in Stainless Steel (SS304/SS316) upon request
- Heat Transfer Area
- 6-12 m2 (customized as per requirement)
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Heat Exchanger Category
20 TR Water Cooled Condenser
Price 30000.0 INR / Unit
Minimum Order Quantity : 1 Unit
Condition : New

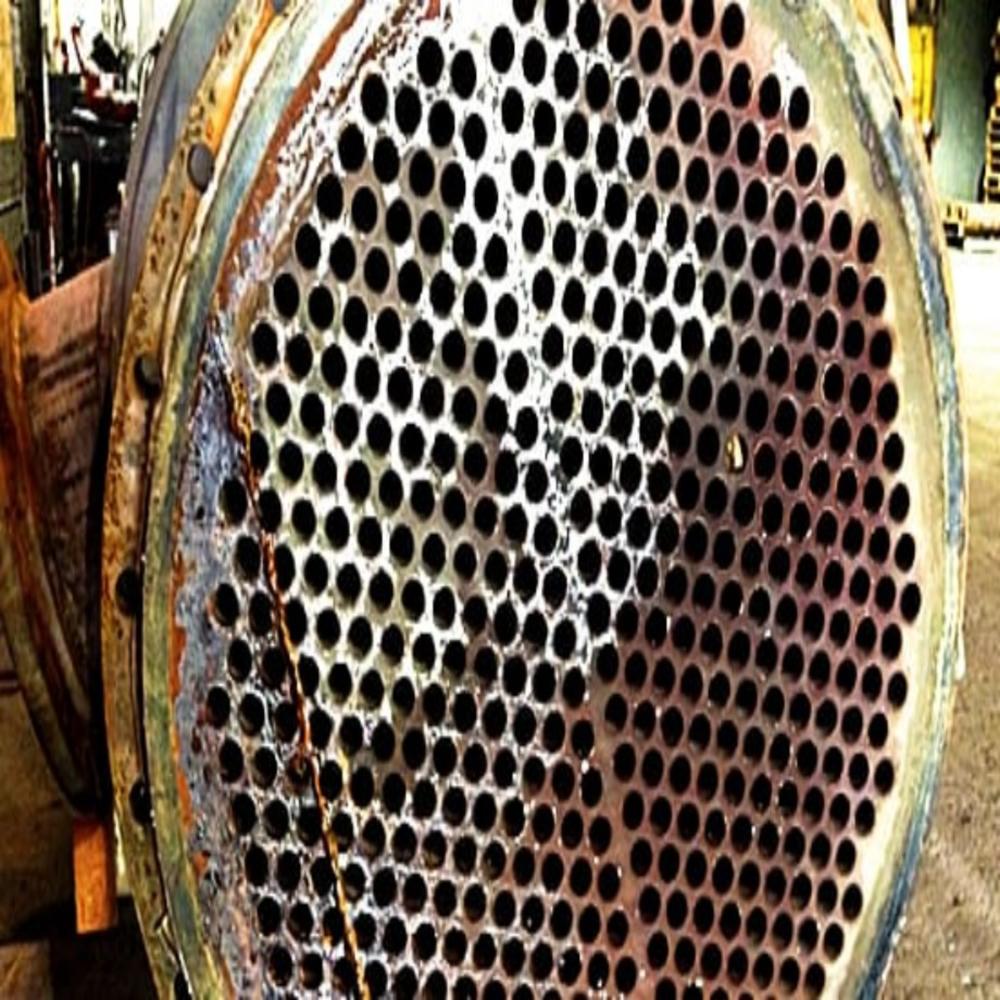

Heat exchanger repairing
Price 2000.0 INR / Unit
Minimum Order Quantity : 5 Units
Condition : Other, Repairing (used / requires maintenance / overhauling)
Max. Capacity : As per original design (varies per unit consult manufacturer data sheet)
Liquid Flow Rate : Custom, up to 500 m3/hr (applicationdependent)
Weight : Varies as per design (Typically 200 kg to several tons depending on size)
Shell And Tube Type Heat Exchanger
Price 45000.0 INR / Unit
Minimum Order Quantity : 1 Unit
Condition : New
Max. Capacity : Up to 500,000 Kcal/hr (varies as per application)
Liquid Flow Rate : 50 to 200 m3/hr (customizable)
Weight : Approx 100500 kg (varies with capacity)
Shell and tube evaporator
Price 20000.0 INR / Unit
Minimum Order Quantity : 1 Unit
Condition : New
Max. Capacity : 12120 TR (Ton of Refrigeration)
Liquid Flow Rate : 10100 m3/h (model dependent)
Weight : Approx. 200500 kg (varies with model)
