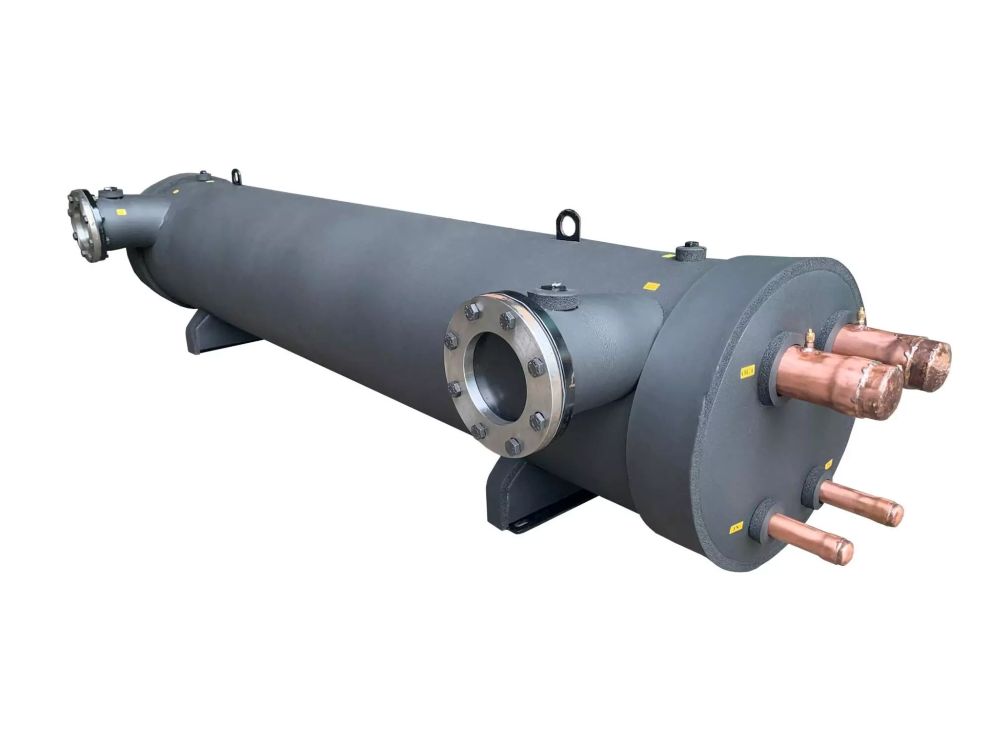

Send InquiryShell and tube evaporator
Price 20000.0 INR/ Unit
MOQ : 1 Unit
Shell and tube evaporator Specification
- Max Pressure
- 25 bar
- Air Volume
- Not applicable (for liquid-to-liquid heat exchange)
- Thickness
- Shell: 8-14 mm, Tube: 1.2-2 mm
- Diameter
- Shell: 300-700 mm
- Max. Capacity
- 12-120 TR (Ton of Refrigeration)
- Temperature
- -10C to 120C (operation range)
- Condition
- New
- Structure
- Shell and tube, horizontal, welded and flanged
- Liquid Flow Rate
- 10-100 m3/h (model dependent)
- Working Presssure
- Up to 2.5 MPa (25 bar)
- Power
- Not applicable (mechanical device, powered by fluid flow)
- Weight
- Approx. 200-500 kg (varies with model)
- Dimensions
- Length: 1.5-3 m, Diameter: 0.3-0.7 m
- Tube Diameter
- 12.7 mm or as specified
- Design Life
- 10-15 years with proper maintenance
- Medium
- Water, glycol, ammonia, R134a, R22, and other refrigerants
- Application
- HVAC, chillers, process cooling, chemical industries
- Tube Cleaning
- Detachable tube bundle for easy maintenance
- Heat Transfer Area
- 8-60 m2
- Corrosion Protection
- Epoxy or polyurethane coating optional
- Material
- Carbon steel shell, copper or stainless steel tubes
- Number of Pipe
- 50-200 (depends on design)
- Tube Layout
- Triangular or square pitch
- Connection Type
- Flanged or threaded inlet/outlet
- Installation
- Horizontal floor mount with support legs
