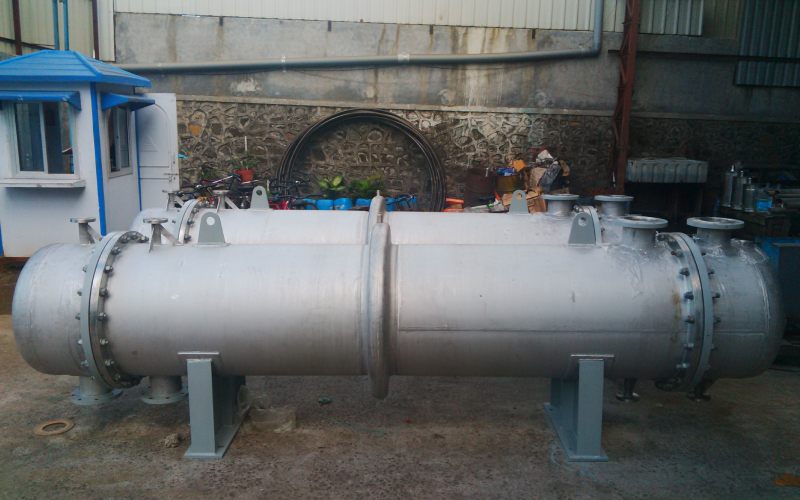

Send InquiryU Type heat exchanger
Price 10000.0 INR/ Unit
MOQ : 2 Units
U Type heat exchanger Specification
- Diameter
- Shell diameter: 500 mm to 1500 mm
- Number of Pipe
- Custom, 40-300 tubes per bundle
- Air Volume
- Not Applicable (for liquid applications)
- Max. Capacity
- Up to 500,000 kcal/hr (Depends on design)
- Thickness
- 6 mm to 25 mm (Shell/Tube plate thickness as per design)
- Max Pressure
- 35 bar
- Temperature
- Operating range: -20C to 350C
- Condition
- New
- Structure
- U-Tube Bundle Shell and Tube Heat Exchanger (Horizontal Mount)
- Liquid Flow Rate
- Up to 200 m3/h (design dependent)
- Working Presssure
- Up to 35 bar (varies as per application)
- Voltage
- Not Applicable (non-electrical device)
- Power
- Not Applicable (non-electrical device)
- Weight
- Varies as per design, typically 500 kg - 3000 kg
- Dimensions
- Customizable, typically 2m - 8m length, 0.5m - 1.5m diameter
- Leakage Test
- Hydrostatic test as per standard
- Tube Diameter
- 12 mm, 16 mm, 19 mm, or as required
- Installation Orientation
- Horizontal
- Heat Transfer Surface Area
- Up to 200 m2 (subject to design)
- Shell Material
- Carbon Steel, Stainless Steel
- End Connections
- Flanged as per ASME/ANSI standard
- Cleaning Access
- Detachable cover for easy cleaning and maintenance
- Tube Length
- Up to 6 meters
- Maintenance
- Low, with easy tube bundle removal design
- Application
- Oil & Gas, Chemical, Petrochemical, Power Plant, HVAC, Marine, Food Processing
- Tube Material
- Stainless Steel (304/316), Copper, Titanium, Carbon Steel
- Tube Sheet Material
- Carbon Steel or Stainless Steel
- Gasket Type
- Spiral wound or as per service media
- Corrosion Resistance
- High (with appropriate material selection)
- Paint/Coating
- External anti-corrosive paint finish
- Operational Life
- 15-25 years (with proper maintenance)
- Tube Pitch
- Triangular or Square as per design
