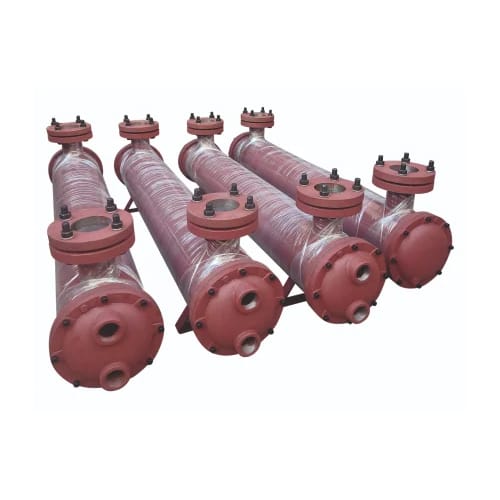

Send InquiryShell and tube type oil cooler
Price 8000.0 INR/ Piece
MOQ : 1 Piece
Shell and tube type oil cooler Specification
- Thickness
- 5-12 mm (shell thickness)
- Max Pressure
- 16 bar
- Temperature
- -10C to 180C
- Number of Pipe
- Typically 30-250 tubes
- Max. Capacity
- Up to 1500 kW (heat exchange)
- Diameter
- 200-600 mm (model dependent)
- Condition
- New
- Structure
- Shell and Tube, Horizontal Mounting
- Liquid Flow Rate
- 1000-8000 LPH (model dependent)
- Working Presssure
- 10-16 bar
- Power
- Not Applicable (passive device)
- Weight
- Approx. 120-500 kg (depends on model)
- Dimensions
- Custom (Common: L 1.5-3 m, D 200-600 mm)
- Test Pressure
- 1.5x of working pressure
- Inlet/Outlet Connection Size
- 1" to 10" (varies by model)
- Shell Material
- Mild Steel, Stainless Steel
- Design Standard
- ASME, TEMA, IS standards
- Usage/Application
- Hydraulic Oil Cooling, Industrial Process Cooling, Lubrication Oil Cooling
- Design Temperature
- Up to 200C
- Mounting Type
- Horizontal Floor Mounted
- Flow Arrangement
- Single Pass/Double Pass (customizable)
- Serviceability
- Removable tube bundle for easy cleaning
- Tube Sheet Material
- Stainless Steel, Brass
- Heat Transfer Area
- Up to 200 m2 (model dependent)
- Corrosion Resistance
- Yes, with optional internal/external coatings
- Tube Material
- Copper, Stainless Steel, Brass
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Heat Exchanger Category
Industrial Shell And Tube Type Heat Exchanger
Price 50000.0 INR / Unit
Minimum Order Quantity : 1 Unit
Max Pressure : 16 bar (can be customized up to 40 bar)
Condition : New
Thickness : 6 mm to 20 mm (based on pressure/requirement)
Working Presssure : Up to 16 bar (customizable as per requirement)
Shell and tube heat exchanger
Price 5900.0 INR / Piece
Minimum Order Quantity : 1 Piece
Max Pressure : 25 Bar
Condition : New
Thickness : Shell: 8 mm, Tube: 2.5 mm (customizable as per requirement)
Working Presssure : 10 25 Bar (customizable)
Shell and tube Ammonia condenser
Price 20000.0 INR / Unit
Minimum Order Quantity : 1 Unit
Max Pressure : Up to 20 Bar
Condition : New
Thickness : 8 mm 32 mm (shell thickness as per pressure rating)
Working Presssure : 10 20 Bar (varies as per design and application)
plate Type heat exchanger
Price 12000.0 INR / Unit
Minimum Order Quantity : 1 Unit
Max Pressure : 16 bar
Condition : New
Thickness : Plate Thickness: 0.50.8 mm
Working Presssure : Up to 16 bar
