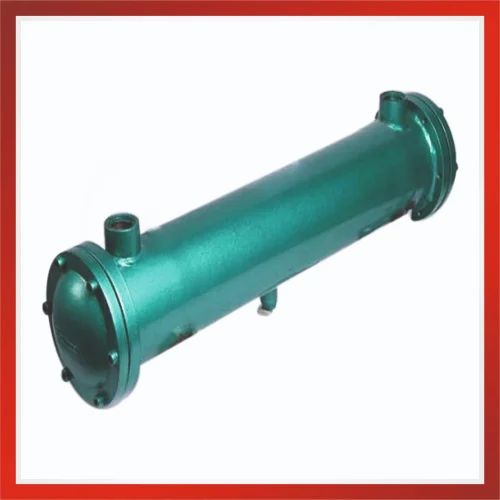

Send InquiryShell and tube oil cooler
Price 5000.0 INR/ Piece
MOQ : 1 Piece
Shell and tube oil cooler Specification
- Thickness
- 3-6 mm (shell thickness)
- Diameter
- 100-300 mm (varies by model)
- Number of Pipe
- 20-100 tubes (depends on capacity)
- Max Pressure
- 16 bar
- Temperature
- Up to 180C
- Max. Capacity
- Up to 150 kW heat exchange capability
- Condition
- New
- Structure
- Shell and tube, cylindrical body
- Liquid Flow Rate
- Up to 1200 LPH (Liter per hour)
- Working Presssure
- Up to 16 bar
- Power
- No power required (Works on fluid pressure)
- Weight
- Approx. 15-50 kg (Depends on model)
- Dimensions
- Custom sizes available, e.g., 800 x 200 mm (L x D)
- Mounting Type
- Horizontal or Vertical installation
- Tube Cleaning
- Easy access for maintenance/cleaning
- Corrosion Resistance
- Yes, anti-corrosive coating available
- End Cover Type
- Removable or fixed
- Tube Material
- Copper, Stainless Steel, or Brass
- Shell Material
- Mild Steel/Carbon Steel/Copper/Stainless Steel (on request)
- Connection Size
- 1" to 6" (BSP/NPT/Flange options)
- Design Standard
- ASME, TEMA, or customized
- Application
- Hydraulic oil cooling, transformer oil cooling, process industries
