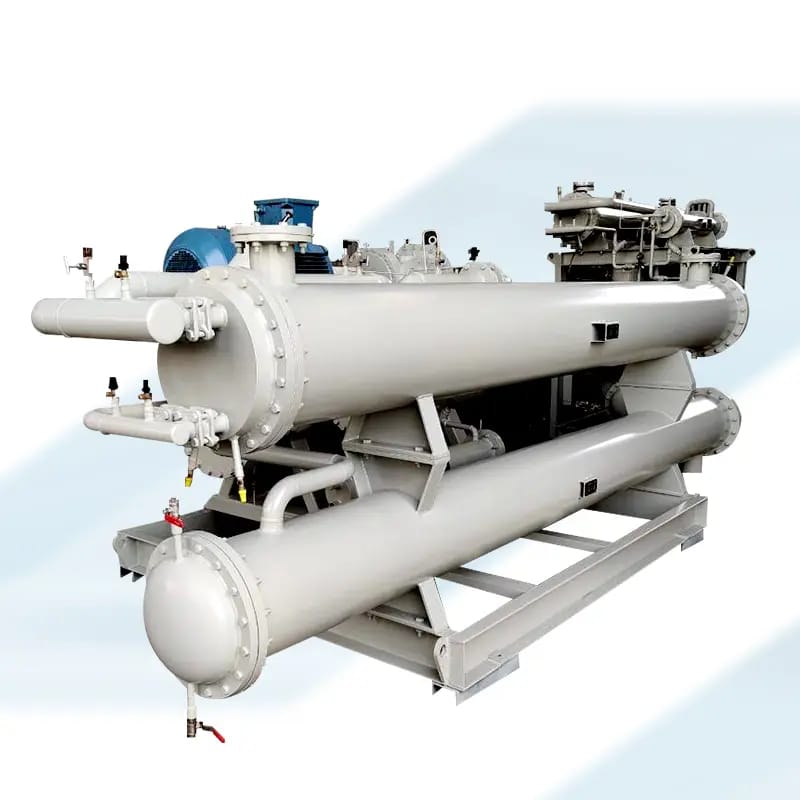

Send InquiryShell and tube water cooled condenser 300 TR
Price 150000.0 INR/ Unit
MOQ : 1 Unit
Shell and tube water cooled condenser 300 TR Specification
- Material
- Shell - Carbon Steel, Tubes - High efficiency copper/aluminium
- Application
- Chilled water systems, process cooling, HVAC plants, industrial refrigeration
- Air Flow
- N/A (Water cooled type)
- Motor
- Standard heavy-duty electric motor
- Refrigerating Capacity
- 300 TR (Ton of Refrigeration)
- Condition
- New
- Type
- Shell and Tube Water Cooled Condenser
- Dimension (L*W*H)
- Customized (Typical range: ~3500 mm x 1200 mm x 1500 mm)
- Power Supply
- Three-phase, 50/60 Hz
- Voltage
- 380-440V (Customizable)
- Cooling Type
- Water Cooled
- Nozzle Material
- MS/MS with rubber lining or SS (as per requirement)
- Cooling Coil Material
- Copper / Copper alloy tubes
- Water Flowing Rate
- 60-70 m3/hr
- Water Pump Motor
- Matched as per flow and pressure requirements
- Noise Control
- Low vibration and sound level
- Compressor
- Compatible with open and semi-hermetic compressors
- Tube Arrangement
- Tube nest design with removable tube bundle
- Number of Tubes
- Varies with design, generally between 180-350
- Mounting
- Heavy-duty steel base with lifting lugs
- Refrigerant Compatibility
- Ammonia, R22, R134a, R407c, R404a, and more
- Tube Diameter
- Typically 19mm (customizable)
- Test Pressure
- Hydrostatic test pressure up to 300 psi
- Operating Pressure
- Up to 20 bar (shell side), 15 bar (tube side)
- Flow Configuration
- 1-pass, 2-pass, or 4-pass available
- Maintenance
- Designed for easy cleaning and tube replacement
- Gasket Material
- Neoprene/EPDM/Viton as per fluid compatibility
- Corrosion Protection
- Epoxy painted exterior and tube sheets with anti-corrosive coating
- Inlet/Outlet Connection Size
- DN100 or as per client's requirement
- Weight
- Approx. 3200-4000 kg (depending on customization)
- Heat Exchange Area
- Design specific, approx. 100-120 m2
