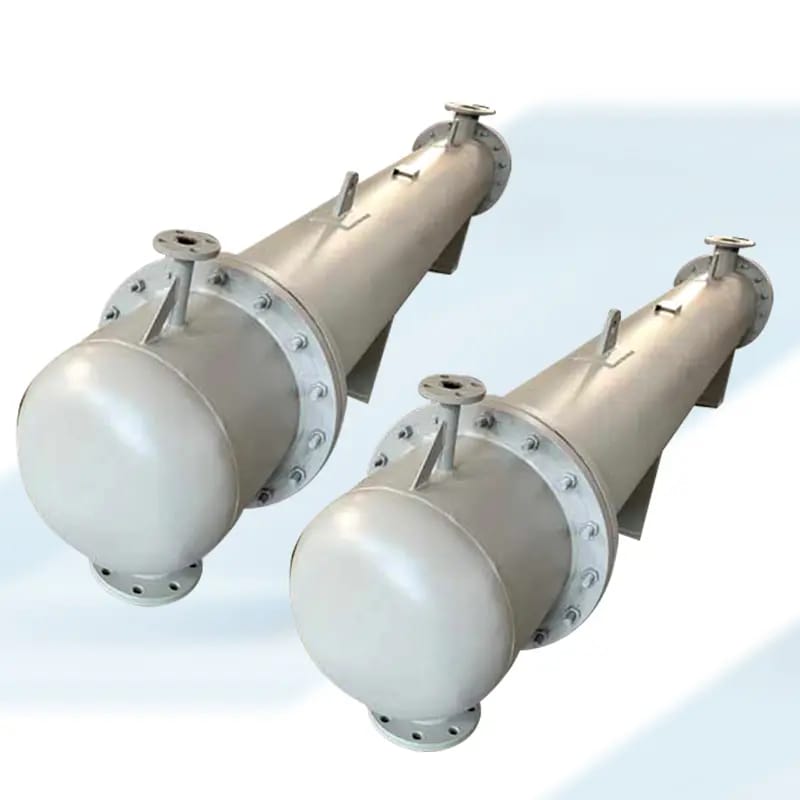

Send InquiryShell and tube oil cooler
Price 10000.0 INR/ Piece
MOQ : 1 Piece
Shell and tube oil cooler Specification
- Diameter
- 400 mm (shell), can be customized
- Max Pressure
- 16 bar (design dependent)
- Thickness
- 6 mm (shell thickness, typical)
- Max. Capacity
- Up to 50000 kcal/hr
- Temperature
- -10C to 150C operating range
- Number of Pipe
- 100 tubes (approx, varies as per size)
- Condition
- New
- Structure
- Shell and Tube, Horizontal Mounted
- Liquid Flow Rate
- Up to 200 LPM (can be customized)
- Working Presssure
- Up to 10 bar (varies by design)
- Power
- Not Applicable (Passive heat exchanger)
- Weight
- 350 kg (approx)
- Dimensions
- 1500 mm x 400 mm x 400 mm (varies as per model)
- Corrosion Protection
- Epoxy painted or powder coated
- End Cover Type
- Detachable bolted head for easy cleaning
- Mounting Type
- Floor mounted with support legs
- Application
- Hydraulic oil cooling, lubrication oil cooling, process fluid cooling
- Connection Type
- Flanged connections as per standard
- Design Standard
- ASME, TEMA, or customized
- Tube Material
- Copper or Stainless Steel (optional)
- Material of Construction
- Mild Steel, Stainless Steel, Brass, Copper (as per application)
- Heat Transfer Area
- Up to 20 m2 (varies by model)
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Heat Exchanger Category
Shell and tube Ammonia condenser
Price 20000.0 INR / Unit
Minimum Order Quantity : 1 Unit
Weight : Approx. 1.2 3.5 tons (depending on size and configuration)
Structure : Other, Horizontal Shell and Tube
Power : Not applicable (passive heat exchanger, no direct power input)
Liquid Flow Rate : 5000 35000 LPH (litres per hour), based on model
Heat exchanger repairing
Price 2000.0 INR / Unit
Minimum Order Quantity : 5 Units
Weight : Varies as per design (Typically 200 kg to several tons depending on size)
Structure : Other, Shell and tube
Power : Not applicable (manual/maintenance process)
Liquid Flow Rate : Custom, up to 500 m3/hr (applicationdependent)
1500 K.V.A DG Set shell and tube heat exchanger
Price 50000.0 INR / Piece
Minimum Order Quantity : 1 Piece
Weight : Approximately 400 kg
Structure : Other, Shell and Tube Type
Power : 1500 KVA (generator capacity)
Liquid Flow Rate : 300400 LPM
Shell and tube heat exchanger
Price 5900.0 INR / Piece
Minimum Order Quantity : 1 Piece
Weight : Approx. 450 kg (depends on model and size)
Structure : Other, Shell and Tube, Horizontal Orientation
Power : Not applicable (passive device)
Liquid Flow Rate : Up to 250 m3/h (varies as per requirement)
